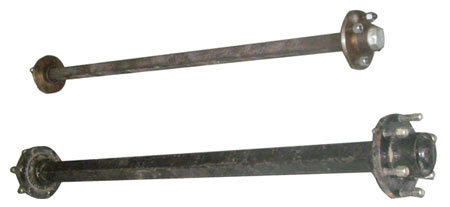

Axles

Axle are the central shaft for a rotating wheel or gear. So it is the important part of vehicle. Our stock contains the best quality axles at competitive prices. We manufacture axle according to the users demand and specification. We export axle to south america, middle east and to some parts of europe. Our quality products made us leader in the field and in between our rivals.



  Axles manufcturer and supplier Windsor , suppling hand cart apre parts world Wide.

Solid Axel(Square-AF) Bearing 1 Bearing 2 Hub Bolt No. of Hub Bolts L Bet. Flanges App  Wt. kg Rim   seat dia Hub  bolt   PCD

             Hub

35 x 35 30206 30206 M 16x1.5 4 1000 16 84 130 Forged
35 x 35 30206 30206 M 16x1.5 4 1100 17 84 130 Forged
35 x 35 30206 30206 M 16x1.5 4 1250 18.5 84 130 Forged
35 x 35 30206 30206 M 16x1.5 4 1400 20.5 84 130 Forged
40 x 40 30206 30206 M 16x1.5 4 1100 21 84 130 Forged
40 x 40 30206 30206 M 16x1.5 4 1250 23 84 130 Forged
40 x 40 30206 30206 M 18x1.5 4 1400 24.5 84 130 Forged
50 x 50 30208 30210 M 18x1.5 6 1500 50 160 205 SG Iron
60 x 60 30208 30210 M 18x1.5 6 1630 79 160 205 SG Iron
60 x 60 30208 30210 M 18x1.5 6 1500 75 160 205 SG Iron
60 x 60 30207 30210 M 18x1.5 6 1500 75 160 205 SG Iron
65 x 65 30209 30211 M 18x1.5 6 1630 86 160 205 SG Iron
65 x 65 30209 30211 M 18x1.5 6 1500 81 160 205 SG Iron
70 x 70 30209 30211 M 18x1.5 6 1630 98 160 205 SG Iron
70 x 70 30209 30211 M 18x1.5 6 1500 88 160 205 SG Iron
70 x 70 30208 30211 M 18x1.5 6 1600 92 160 205 SG Iron

Features:-

All Axles fitted with  4 Taper Roller bearings for added load and better performance. Axle and forged hub, machined on CNC machines, maintaining best possible tolerances.Hub is hot forged to withstand high load.,

All Hub Bolts are high tensile fasteners of 10.9 Grade / 8.8 Grade.

No pollution - no fossil fuels, all conventional energy utilization only.
